A request to install a new reception screen at St Giles House. This centre provides assessments & short-term treatment for people needing mental health support.
- Remove existing screen & dispose of safely.
- Supply, deliver & install 1 fixed screen in toughened glass glazed in aluminium channel, approx. 4800×1550(h).
- Toughened clear flat glass faceted around the curved corner with dry joints, 10mm thick with polished edges.
- Aluminium hidden fixed glazing channel, walls & counter channel 25x25mm, finished in anodised aluminium or power coated white.
- Supply & install 1 transaction slot 300×200 from counter to the glass, edges polished.
- Supply & install 2 speech transfer units, each 200mm diameter hole in glass with a stainless-steel guard (mounted above transaction slot).
- Supply & install 1 lockable hinged or sliding hatch to enable packages to be passed 330x350mm.
- Provide CAD drawings prior to manufacture.
- Works carried out (Sunday), out of hours due to the nature of the works to avoid disruption to patients & staff.

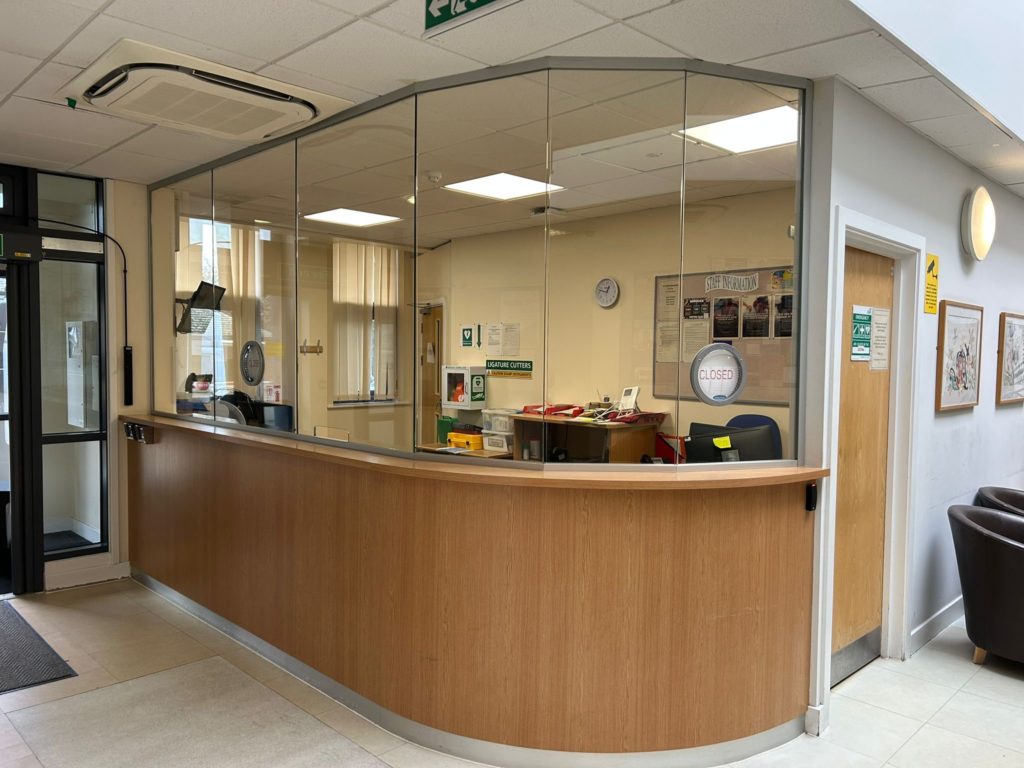

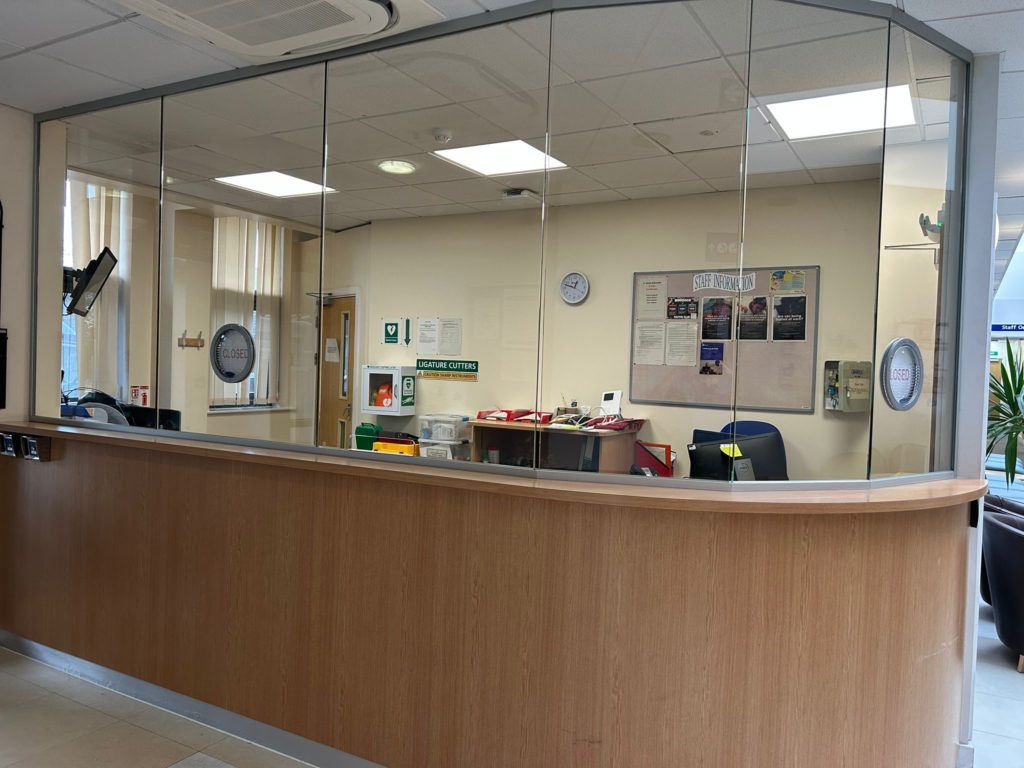

St Giles House – New Reception Screen
